Sucker Rod Tongs
Made in Canada for precision and durability, the M Sucker Rod Tong series is a versatile hydraulic tong engineered for efficient make-up and break-out of sucker rods and tubing. Its advanced hydraulic system delivers smooth, controlled torque, while its compact structure ensures safe, reliable operation in demanding oilfield environments.
Features:
Special clamping mechanism can quickly and safely make-up/break-out sucker rods or small tubular columns of different specifications.
Screw leveling device is adopted, which can easily adjust the balance of sucker rod tong to reach the ideal position.
Advanced torque sensing system can accurately display the torque value of make-up.
The main tong is equipped with an automatic opening and closing safety door for safety protection.
OR CALL 780-955-0270

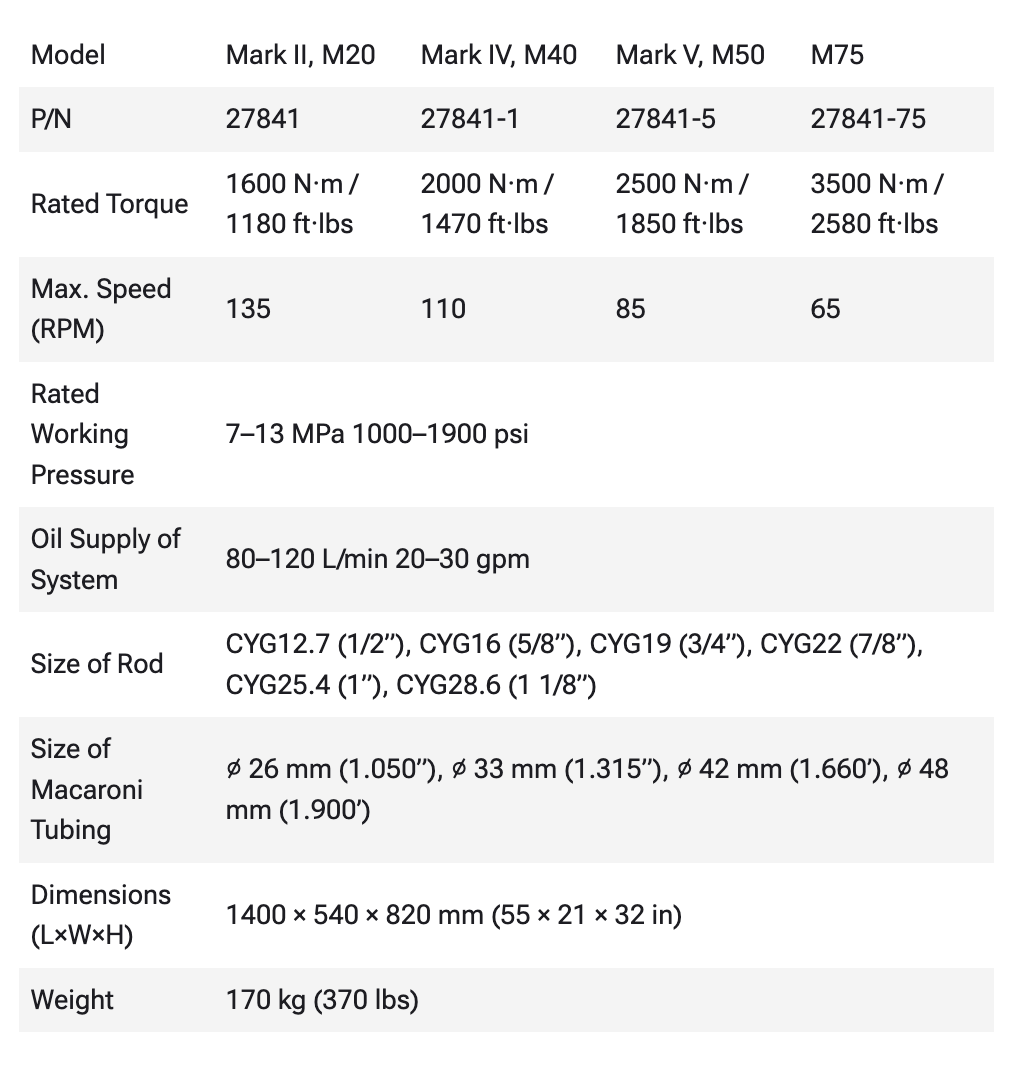

Model
Mark II, M20
Mark IV, M40
Mark V, M50
M75
P/N
27841
27841-1
27841-5
27841-75
Rated Torque
Rated Working Pressure
Size of Rod
Size of Macaroni Tubing
1600 N·m / 1180 ft·lbs
2000 N·m / 1470 ft·lbs
2500 N·m / 1850 ft·lbs
3500 N·m / 2580 ft·lbs
Max Speed (RPM)
135
110
85
65
7–13 MPa 1000–1900 psi
Oil Supply of System
80–120 L/min 20–30 gpm
CYG12.7 (1/2”), CYG16 (5/8”), CYG19 (3/4”), CYG22 (7/8”), CYG25.4 (1”), CYG28.6 (1 1/8”)
⌀ 26 mm (1.050”), ⌀ 33 mm (1.315”), ⌀ 42 mm (1.660’), ⌀ 48 mm (1.900’)
Dimensions (LxWxH)
1400 × 540 × 820 mm (55 × 21 × 32 in)
Weight
170 kg (370 lbs)
