Home > Triumph DieHard Pump

Red industrial machine component with a large circular opening and various protruding parts, labeled 'DIEHARD'.
Red industrial machine component with a large circular opening and various protruding parts, labeled 'DIEHARD'.

Heavy Duty Rotary Gear Pump MEHD 450-90D

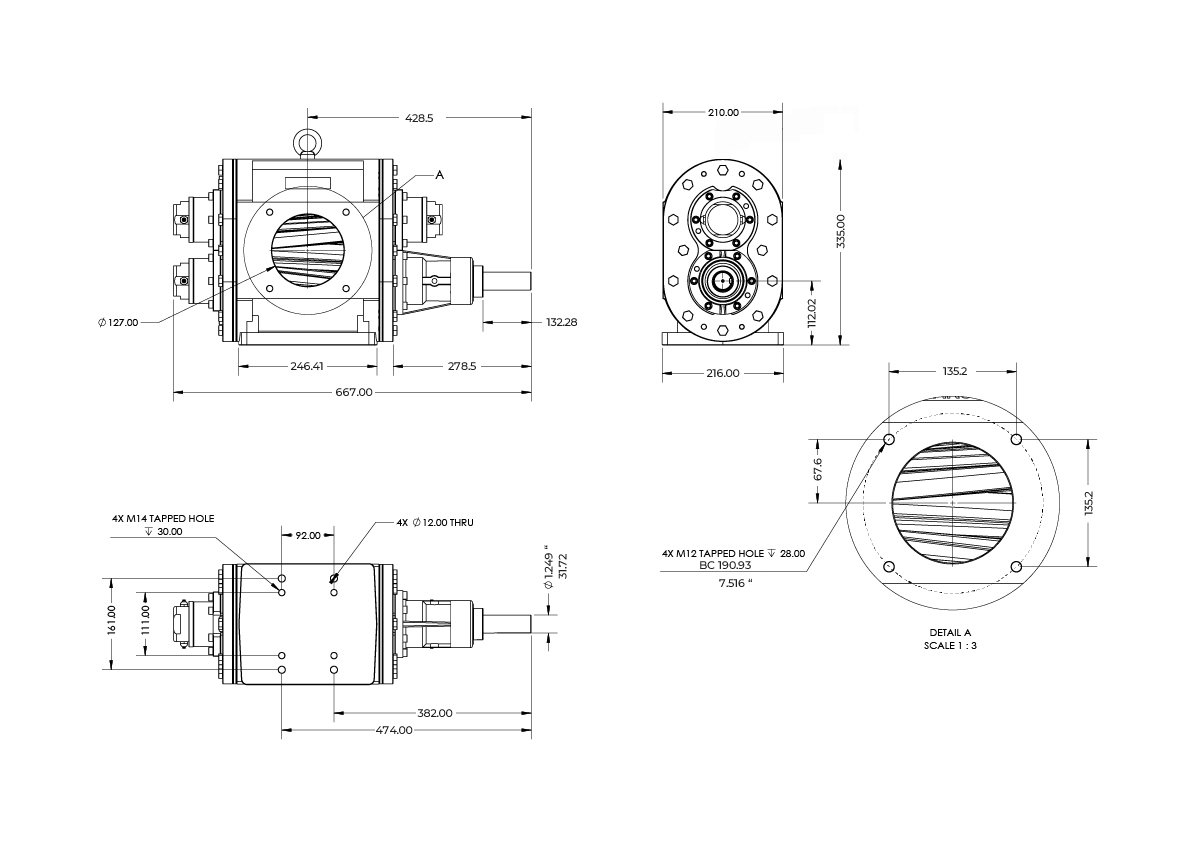

Technical drawing of a mechanical device with multiple views, including front, side, and top, with detailed dimensions and annotations.
Technical drawing of a mechanical device with multiple views, including front, side, and top, with detailed dimensions and annotations.

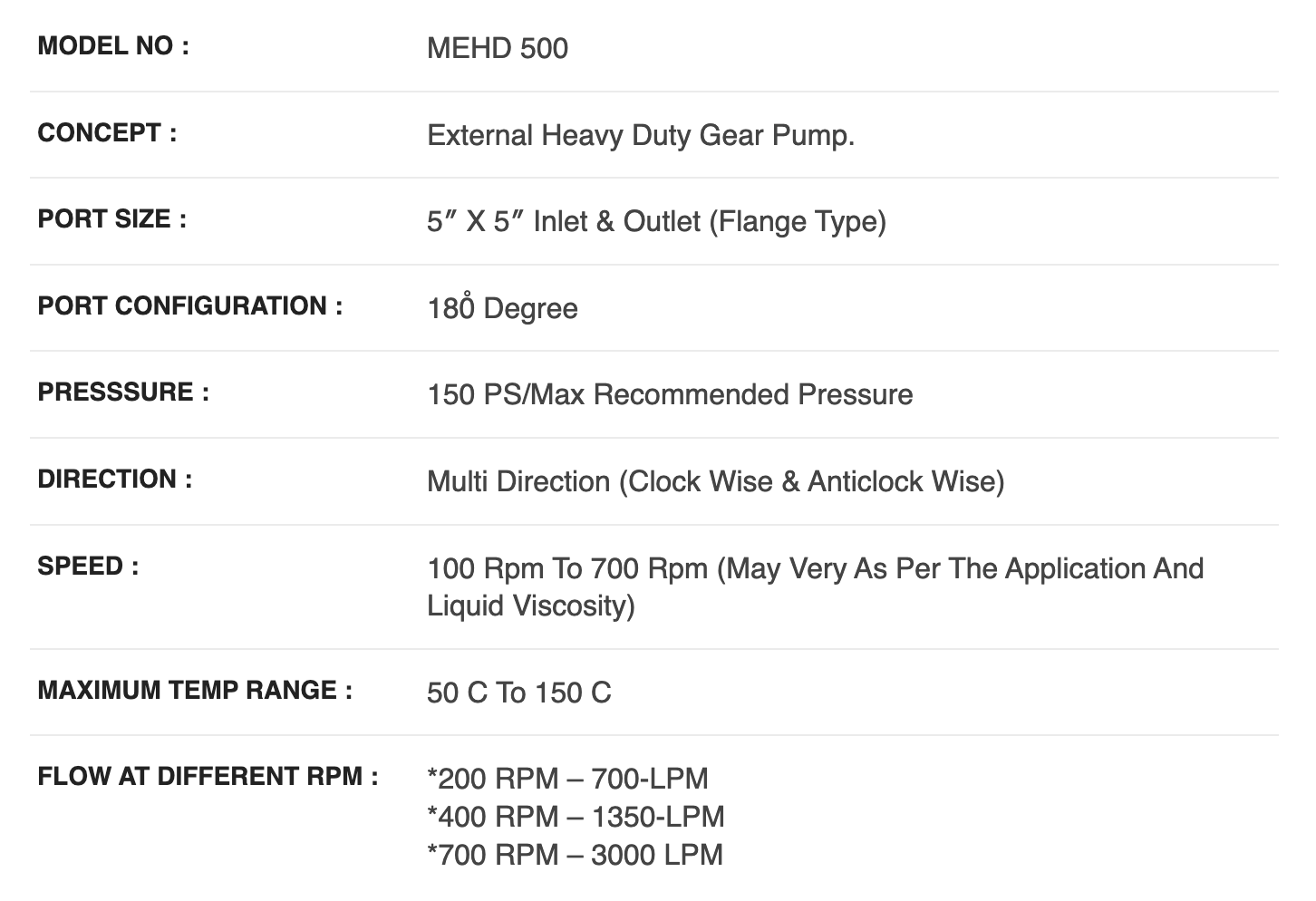

Technical specifications sheet for an external heavy-duty gear pump, model MEHD 500, including port size, configuration, pressure, direction, speed, temperature range, and flow rates at different RPMs.

Technical Specification

Model No:

Concept:

Port size:

Port configuration:

Presssure:

Direction:

Speed:

MEHD 500

External Heavy duty gear pump.

5″ x 5″ Inlet & Outlet (flange type)

180̊ Degree

150 PS/Max Recommended Pressure

Multi direction (clock wise & anticlock wise)

100 rpm to 700 rpm (May very as per the application and liquid viscosity)

Request A Quote

OR CALL 780-955-0270

Maximum temp range:

Flow at different rpm:

50 C to 150 C

*200 RPM – 700-LPM
*400 RPM – 1350-LPM
*700 RPM – 3000 LPM
