Hydraulic Casing Tongs

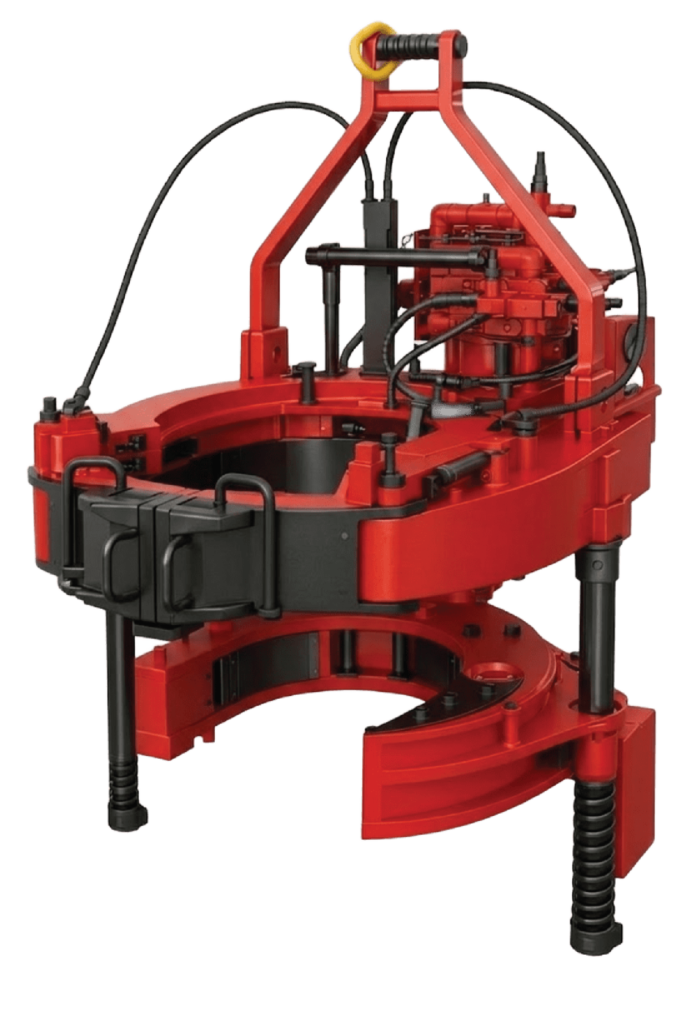

A red and black hydraulic crimping tool with a curved base and a vertical handle.

KD13375 Casing Tong

  • Features:

    • Open-face integral tong head with double jaw-plate design

    • Four-speed operation delivering high torque and wide working range

    • Brake-belt braking system with high-stiffness notched gear support

    • Fully hydraulic shifting with durable cast-steel jaws

    • Reinforced notched large-gear support structure for increased strength and rigidity

    • Equipped with hydraulic torque indicator and computer interface for torque monitoring

    • Hydraulic safety-door protection system and wide torque capacity

  • Built in Canada for efficiency and reliability, the KT14000A Casing Tong is engineered for precise make-up and break-out of pipe threads during casing operations.

    Its powerful hydraulic system enhances connection accuracy, reduces operator effort, and improves safety by minimizing thread damage and handling errors — making it a dependable choice for modern oilfield service and well operations

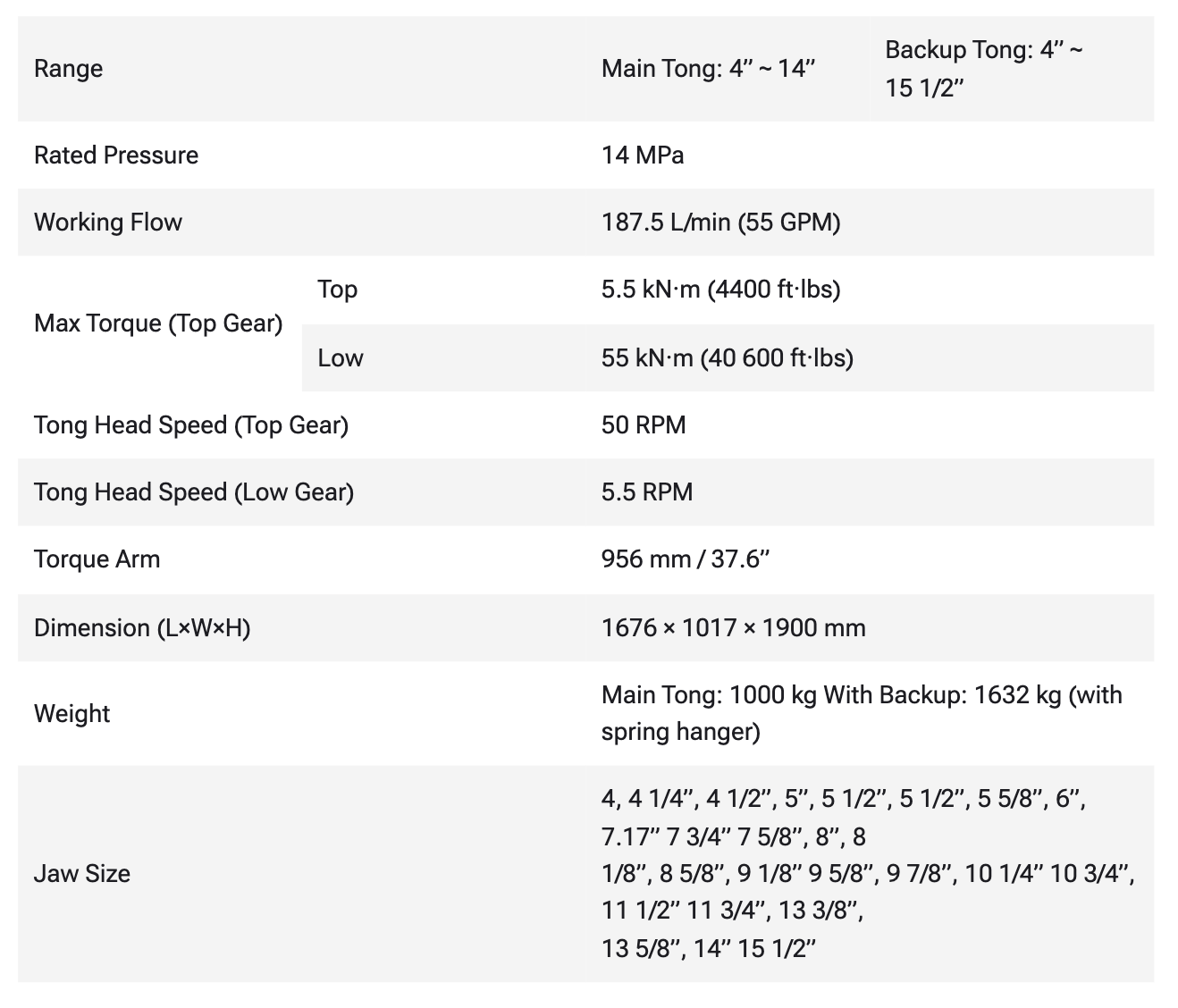

Technical specifications chart for a hydraulic or industrial machine, listing range, rated pressure, working flow, max torque, tong head speeds, torque arm, dimensions, weight, and jaw size.
Red mechanical device with black and yellow handles, circular base, and various mechanical parts.

KD13375 Casing Tong

  • Features:

    • Open-face, integrated tong head

    • Three-jaw plate clamping system reduces string damage

    • Four-speed operation for wide range and high rated torque

    • Brake-belt braking system

    • Large open-gear support structure for enhanced strength and rigidity

    • High-strength steel shell; jaws manufactured through precision casting and forging

    • Equipped with hydraulic torque indicator and interface for torque monitoring instruments, enabling computerized torque management

  • Built in Canada for reliability and precision, the KHT5500 Hydraulic Power Tong is designed for efficient make-up and break-out of tubing from 2 3/8″ to 4 1/2″ and casing up to 5 1/2″.

    Engineered for high performance and operator safety, it delivers smooth torque control, reduces manual labor, and protects threaded connections during critical oilfield operations.

Technical specifications sheet for a hydraulic or mechanical machine, listing range, rated pressure, working flow, maximum torque at top and low gear, tong head speeds, torque arm, dimensions, weight, and jaw size.
A red and black fire station mannequin lift.

KD20-50 Casing Tong

  • Features:

    • Open-face integral tong head with double jaw-plate design

    • Four-speed operation delivering high torque and wide working range

    • Brake-belt braking system with high-stiffness notched gear support

    • Fully hydraulic shifting with durable cast-steel jaws

    • Reinforced notched large-gear support structure for increased strength and rigidity

    • Equipped with hydraulic torque indicator and computer interface for torque monitoring

    • Hydraulic safety-door protection system and wide torque capacity

  • Built in Canada for efficiency and reliability, the KT14000A Casing Tong is engineered for precise make-up and break-out of pipe threads during casing operations.

    Its powerful hydraulic system enhances connection accuracy, reduces operator effort, and improves safety by minimizing thread damage and handling errors — making it a dependable choice for modern oilfield service and well operations.

A technical specifications table for a rotary crane, listing range, rated pressure, working flow, maximum torque for top gear and low gear, tong head speed for top and low gear, torque arm, dimensions, weight, and jaw sizes.

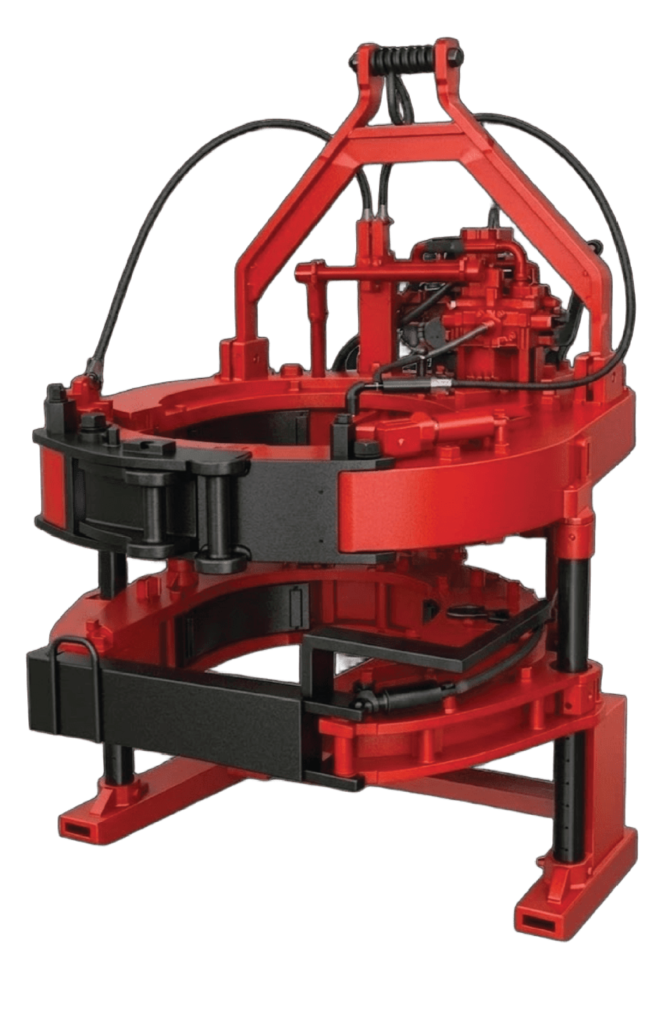

A detailed red and black mechanical device with gears, pipes, and a circular frame, likely a piece of industrial or laboratory equipment.

KD20-50 Casing Tong

  • Features:

    • Automatic hydraulic cutoff for safety — operation stops when the door is opened

    • Hydraulic cylinder positioning system for quick and easy adjustments

    • Strong, rigid frame with large ring transmission and multi-roller support

    • Precision-cast tong head for high strength, easy maintenance, and reliable clamping

    • Belt-brake system delivering strong torque, easy operation, and low maintenance

    • Compatible with torque gauge and NKY recorder for accurate torque measurement and data logging

  • The 16–25 Casing Tongs are Canadian-built hydraulic power tools designed for efficient make-up and break-out of tubing during oilfield installation and servicing operations.

    Featuring advanced tubing clamping technology, a high-performance transmission system, and a reliable safety control system, these tongs provide secure, precise, and effective handling across a range of tubing specifications. Ideal for field operations, they ensure safe and efficient connection and disconnection of threaded tubing in demanding well environments.

Technical specifications table for an industrial or mechanical equipment, listing parameters such as range, rated pressure, working flow, maximum torque, tong head speed, torque arm, dimensions, weight, and jaw size.

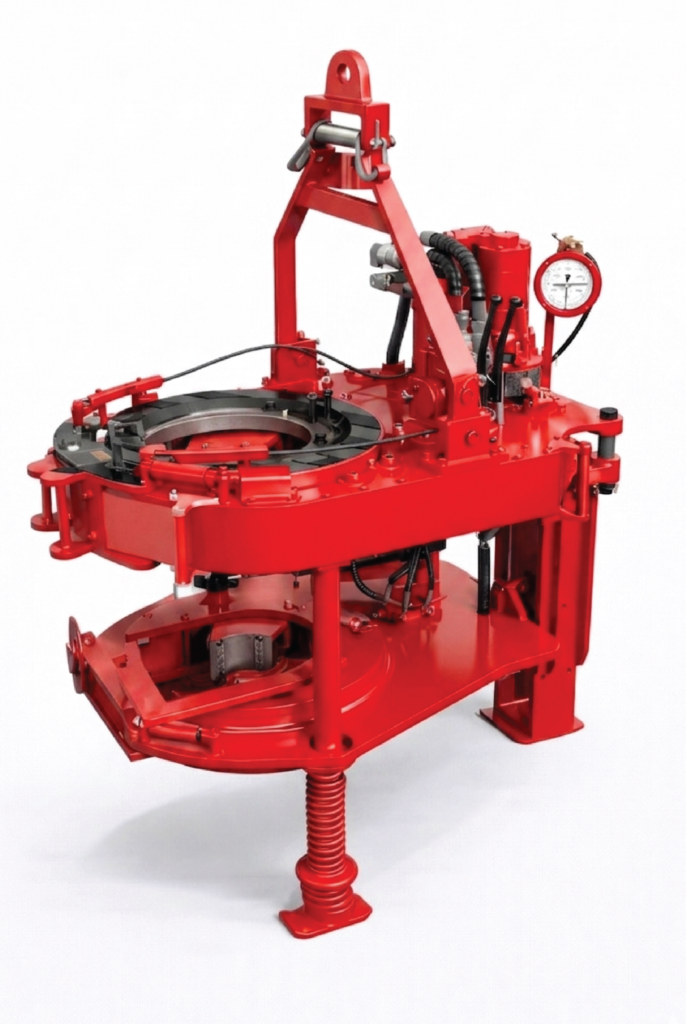

Red industrial hydraulic machine with a gauge and mechanical parts.

KT14000A Casing Tong

  • Features:

    • Open-face integral tong head with double jaw-plate design

    • Four-speed operation delivering high torque and wide working range

    • Brake-belt braking system with high-stiffness notched gear support

    • Fully hydraulic shifting with durable cast-steel jaws

    • Reinforced notched large-gear support structure for increased strength and rigidity

    • Equipped with hydraulic torque indicator and computer interface for torque monitoring

    • Hydraulic safety-door protection system and wide torque capacity

  • Built in Canada for efficiency and reliability, the KT14000A Casing Tong is engineered for precise make-up and break-out of pipe threads during casing operations.

    Its powerful hydraulic system enhances connection accuracy, reduces operator effort, and improves safety by minimizing thread damage and handling errors — making it a dependable choice for modern oilfield service and well operations

A technical specifications table for a piece of industrial equipment, listing range, rated pressure, working flow, maximum torque, tong head speeds, torque arm, dimensions, weight, and jaw sizes.
