Heavy Duty Rotary Gear Pump MEHD 450

A red and black mechanical device with multiple knobs and a cylindrical metal shaft, resembling a specialized industrial or mechanical component.
A red and black mechanical device with multiple knobs and a cylindrical metal shaft, resembling a specialized industrial or mechanical component.

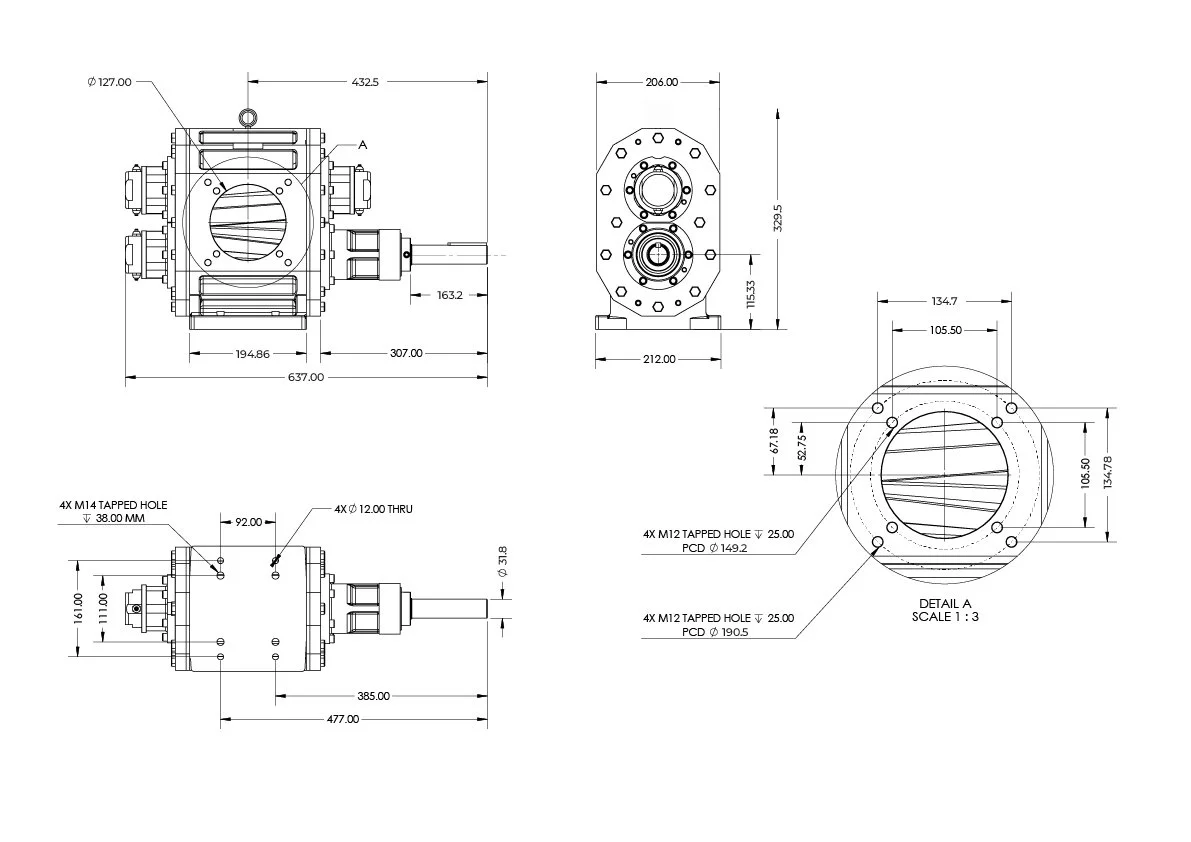

Technical engineering drawing of a mechanical component with multiple views and detailed measurements.
Technical engineering drawing of a mechanical component with multiple views and detailed measurements.

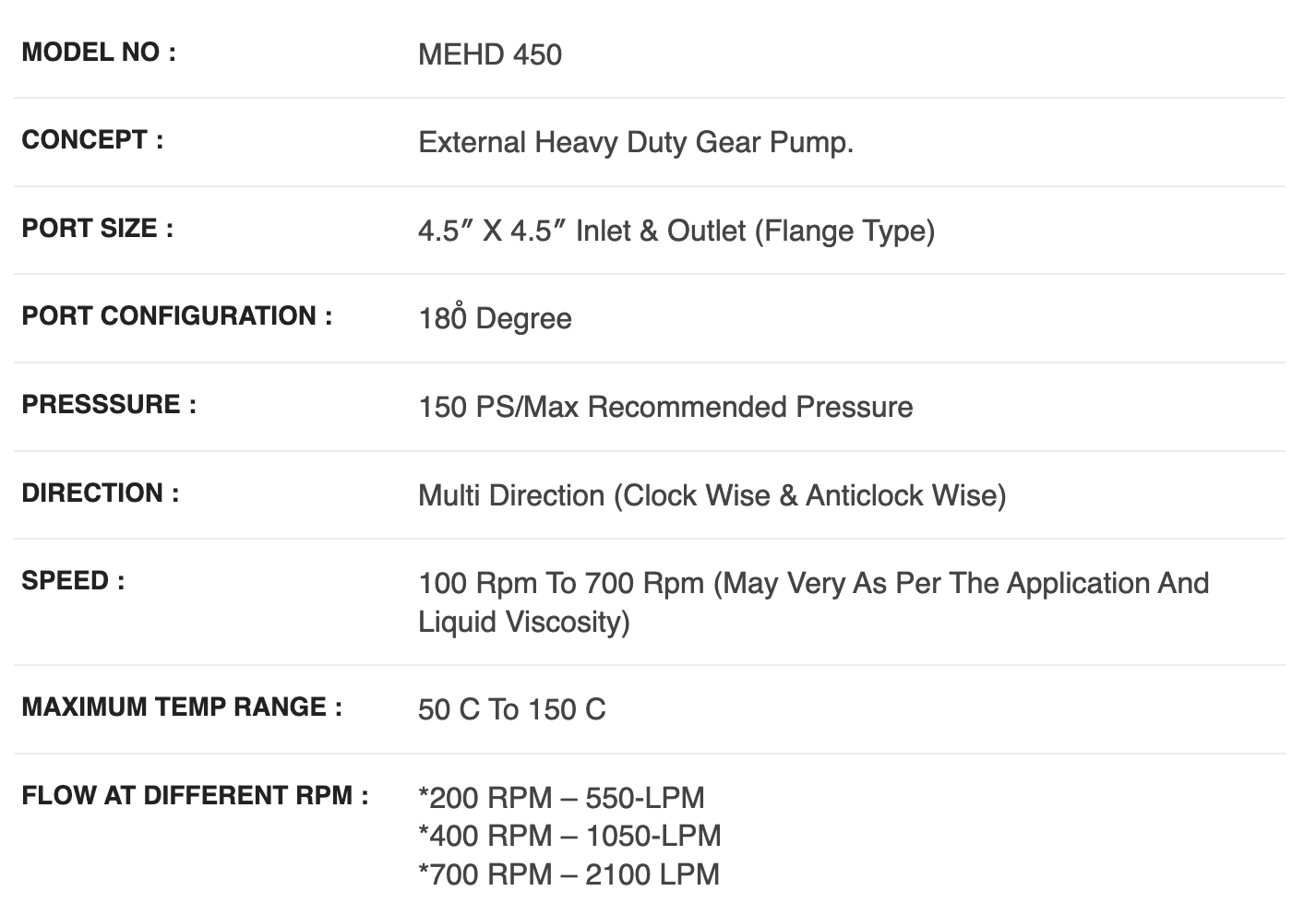

Technical specifications sheet for MEHD 450 heavy duty gear pump, including model number, concept, port size, configuration, pressure, direction, speed, temperature range, and flow rate.

Technical Specification

Model No:

Concept:

Port size:

Port configuration:

Presssure:

Direction:

Speed:

MEHD 450

External Heavy duty gear pump.

4.5″ x 4.5″ Inlet & Outlet (flange type)

180 Degree

150 PS/Max Recommended Pressure

Multi direction (clock wise & anticlock wise)

100 rpm to 700 rpm (May very as per the application and liquid viscosity)

Request A Quote

OR CALL 780-955-0270

Maximum temp range:

Flow at different rpm:

50 C to 150 C

*200 RPM – 550-LPM
*400 RPM – 1050-LPM
*700 RPM – 2100 LPM
