Heavy Duty Rotary Gear Pump MEHD 410

Red and silver mechanical component with black knobs, circular openings, and a metallic shaft extending from one side, possibly an industrial or engineering part.
Red and silver mechanical component with black knobs, circular openings, and a metallic shaft extending from one side, possibly an industrial or engineering part.

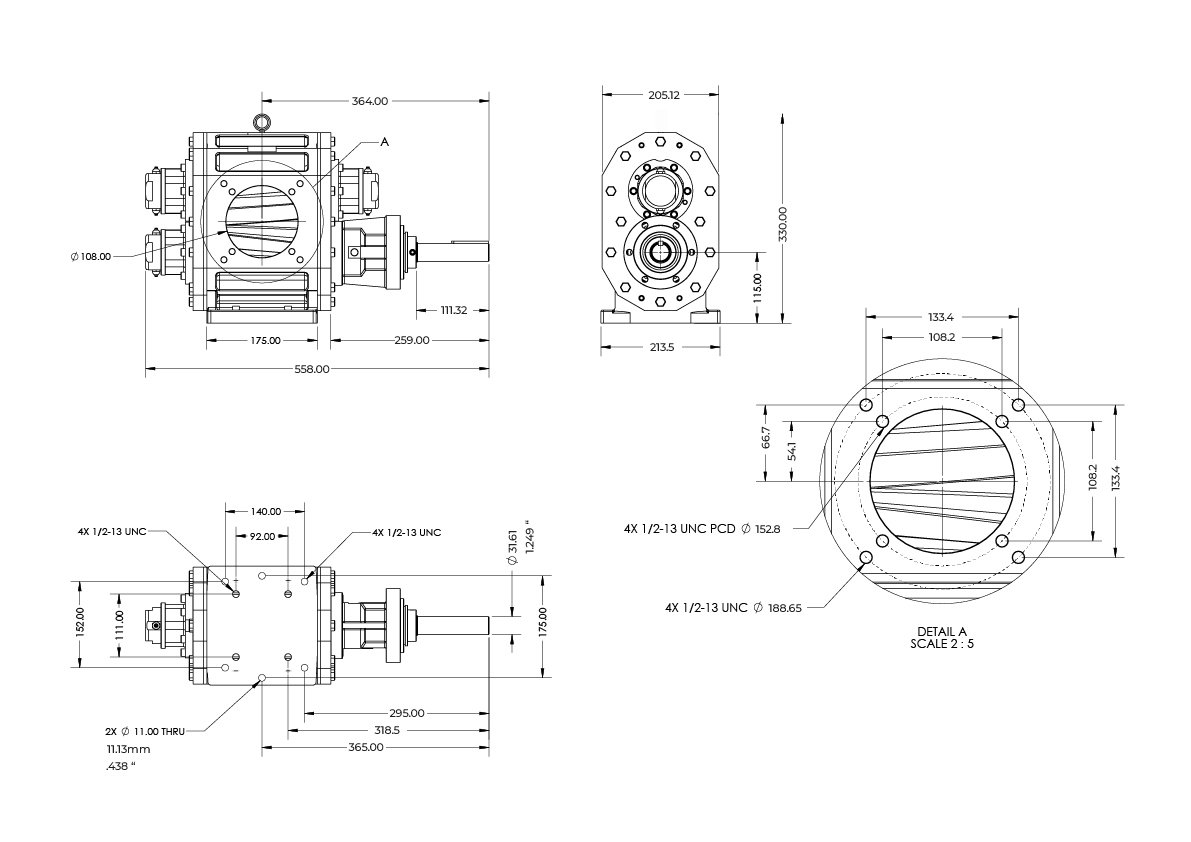

Technical engineering drawing of a mechanical part with multiple views, dimensions, and annotations.
Technical engineering drawing of a mechanical part with multiple views, dimensions, and annotations.

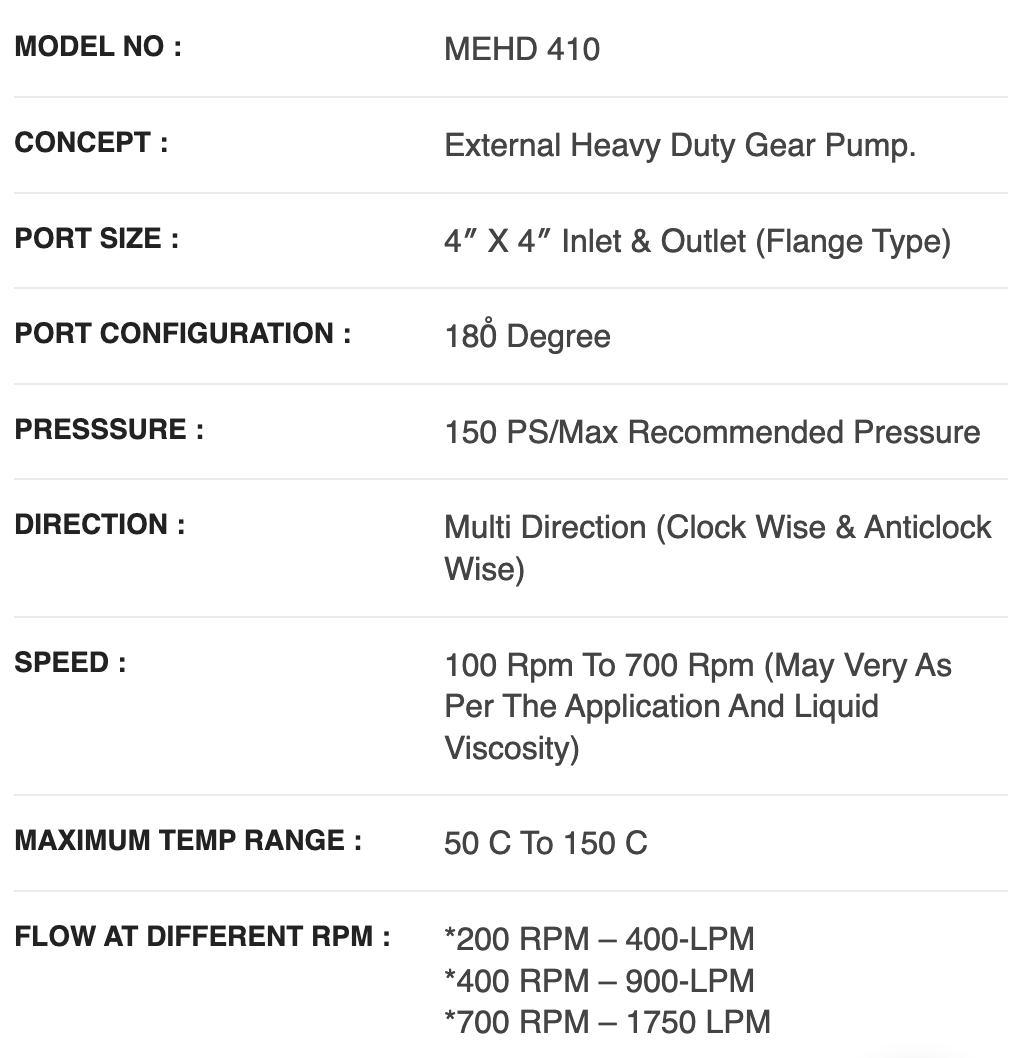

Technical specifications sheet for an external heavy-duty gear pump, model MEHD 410, with details on port size, configuration, pressure, direction, speed, temperature range, and flow rates.

Technical Specification

Model No:

Concept:

Port size:

Port configuration:

Presssure:

Direction:

Speed:

MEHD 410

External Heavy duty gear pump.

3″ x 3″ Inlet & Outlet (flange type)

180 Degree

150 PS/Max Recommended Pressure

Multi direction (clock wise & anticlock wise)

100 rpm to 700 rpm (May very as per the application and liquid viscosity)

Request A Quote

OR CALL 780-955-0270

Maximum temp range:

Flow at different rpm:

50 C to 150 C

*200 RPM – 400-LPM
*400 RPM – 900-LPM
*700 RPM – 1750 LPM
