Home > Triumph DieHard Pump

A mechanical component with a red and black color scheme, featuring a cylindrical metal shaft extending from a red housing with multiple bolts and openings.
A mechanical component with a red and black color scheme, featuring a cylindrical metal shaft extending from a red housing with multiple bolts and openings.

Heavy Duty Rotary Gear Pump MEHD 310

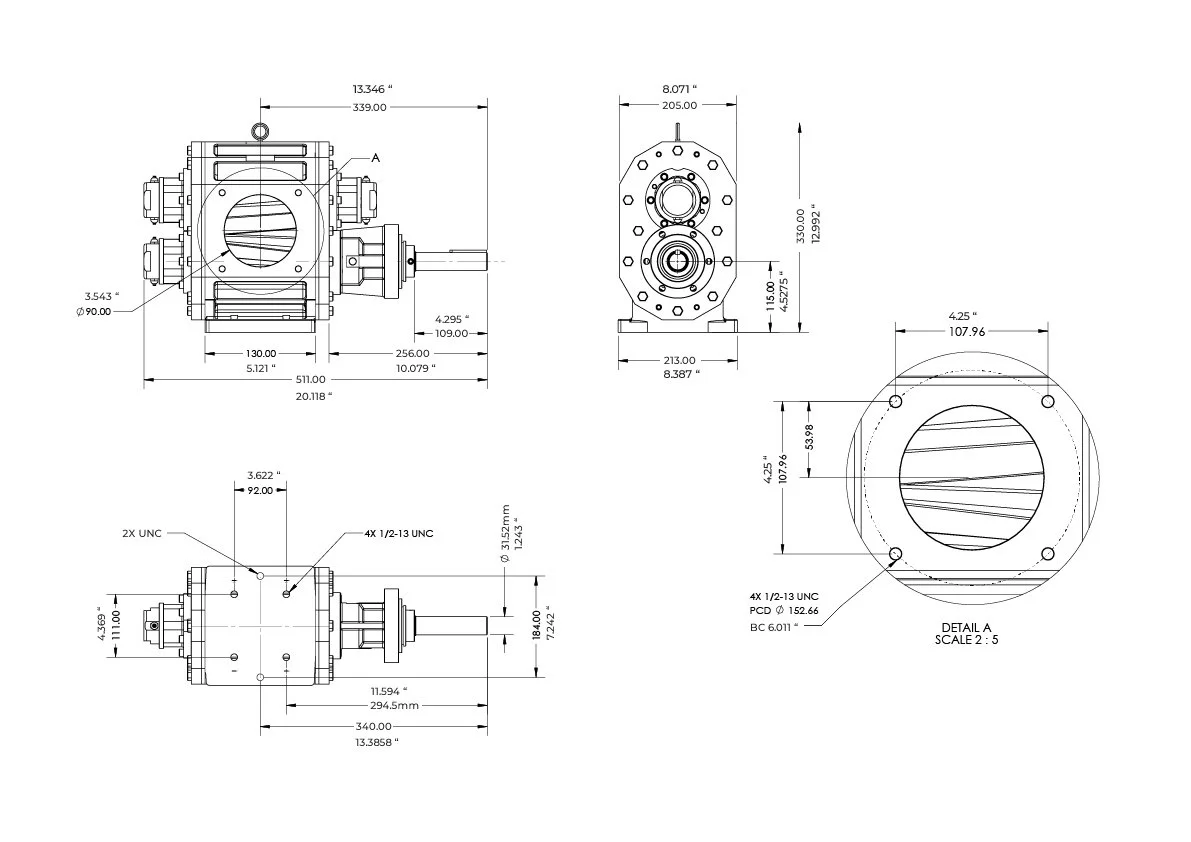

Technical engineering drawing of a mechanical component, showing front, side, and top views with detailed measurements and specifications.
Technical engineering drawing of a mechanical component, showing front, side, and top views with detailed measurements and specifications.

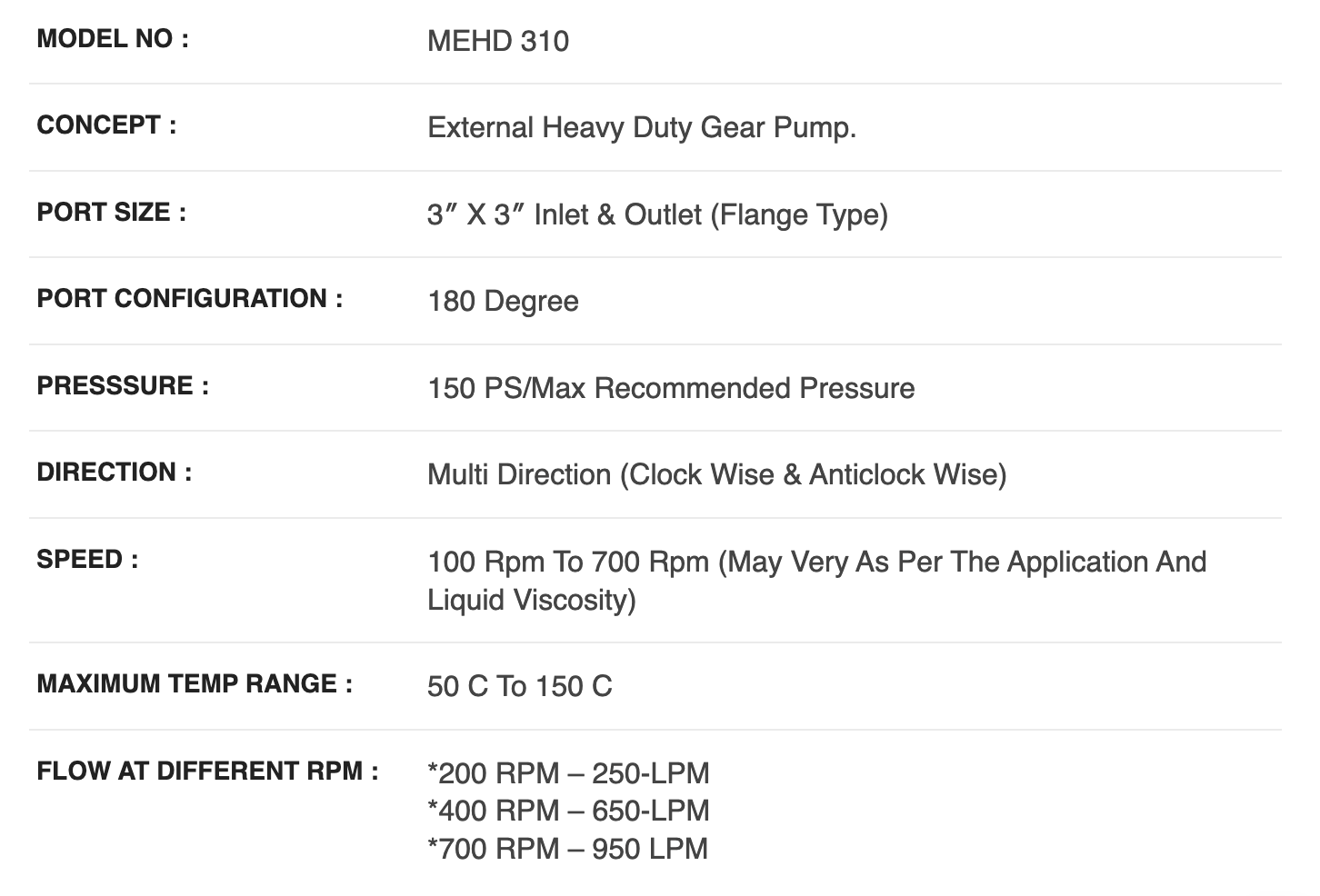

Technical specifications sheet for model MEHD 310 External Heavy Duty Gear Pump, including details about port size, configuration, pressure, direction, speed, temperature range, and flow rates.

Technical Specification

Request A Quote

OR CALL 780-955-0270

Model No:

Concept:

Port size:

Port configuration:

Presssure:

Direction:

Speed:

Maximum temp range:

Flow at different rpm:

MEHD 310

External Heavy duty gear pump.

3″ x 3″ Inlet & Outlet (flange type)

180 Degree

150 PS/Max Recommended Pressure

Multi direction (clock wise & anticlock wise)

100 rpm to 700 rpm (May very as per the application and liquid viscosity)

50 C to 150 C

*200 RPM – 250-LPM

*400 RPM – 650-LPM

*700 RPM – 950 LPM
