Close Head Hydraulic Power Tongs
Engineered and built in Canada, Triumph International Solutions’ Hydraulic Power Tongs deliver reliable, high-torque performance for tubing, small casing, and drill rods across a range of sizes. Featuring a closed-head design, variable torque control, hydraulic lift, oil-bath lubrication, and a two-speed drive system, these tongs ensure smooth, consistent operation in demanding well servicing environments.
A specialized five-jaw clamping system provides secure, precise grip for safe and efficient make-up and break-out, helping protect connections and improve operational efficiency. Durable, compact, and operator-friendly, they are the ideal tool for professional well repair and workover operations.
Features:
Circular friction clutch device — high and low gears can be shifted while operating normally.
Closed-head design — increases service life and provides greater safety.
Chain drive — ensures more stable operation.
Independent lubrication system.
Five-jaw clamping technology — more effective and reliable.
Hydraulic lifter and torque arm (optional).
OR CALL 780-955-0270

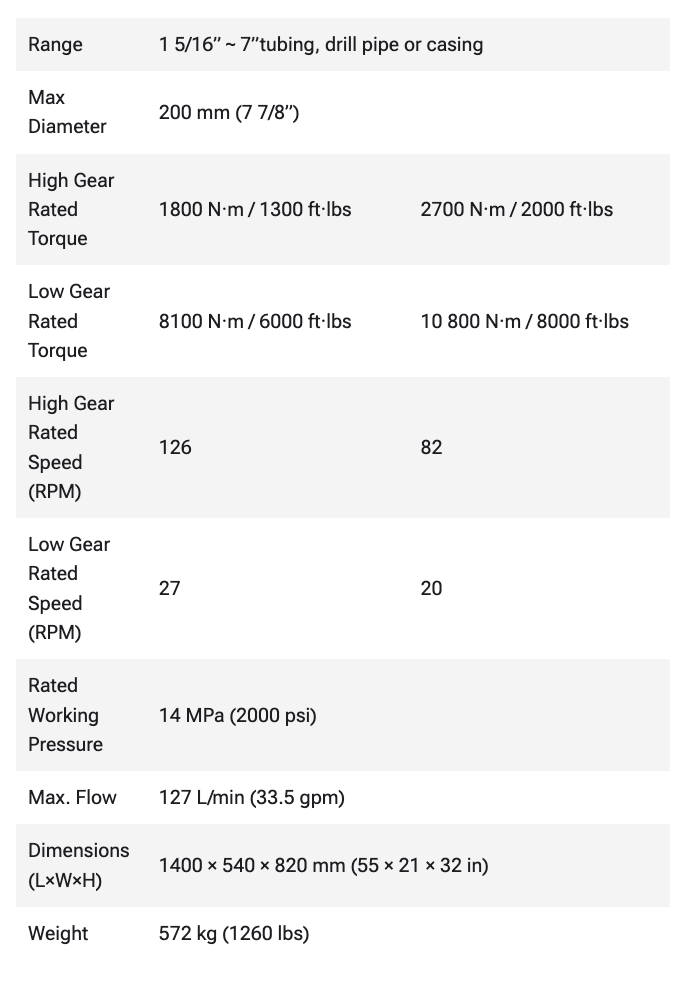

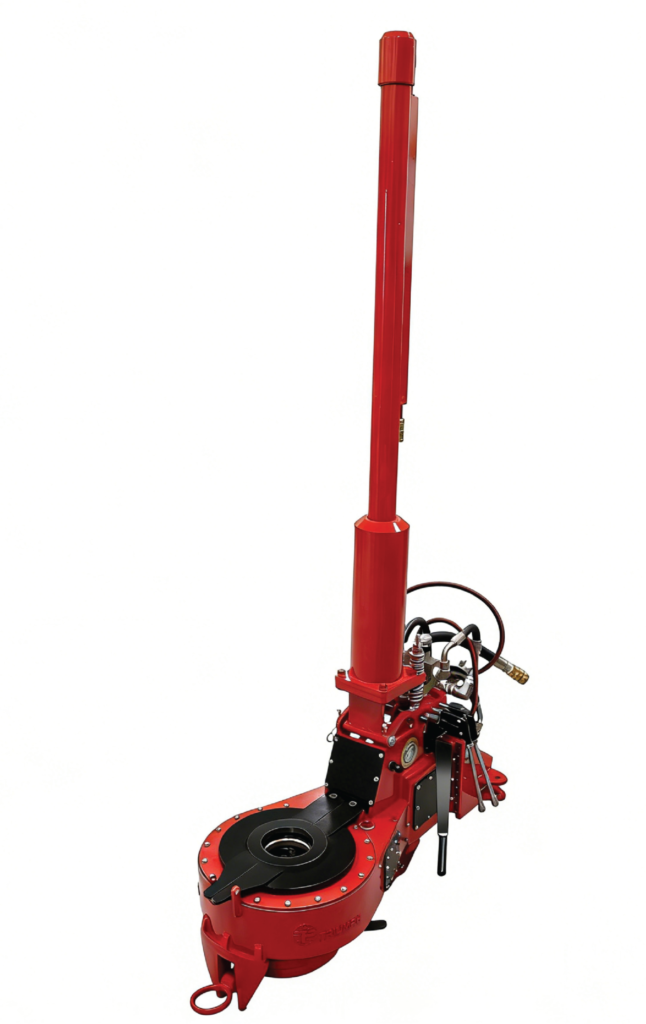

M500 Power Tongs
1 5/16” ~ 7”tubing, drill pipe or casing
Rated Working Pressure
High Gear Rated Torque
Max. Flow
High Gear Rated Speed (RPM)
1800 N·m / 1300 ft·lbs
2700 N·m / 2000 ft·lbs
Max Diameter
200 mm (7 7/8”)
127 L/min (33.5 gpm)
Range
1400 × 540 × 820 mm (55 × 21 × 32 in)
Weight
572 kg (1260 lbs)
14 MPa (2000 psi)
Dimensions (LxWxH)

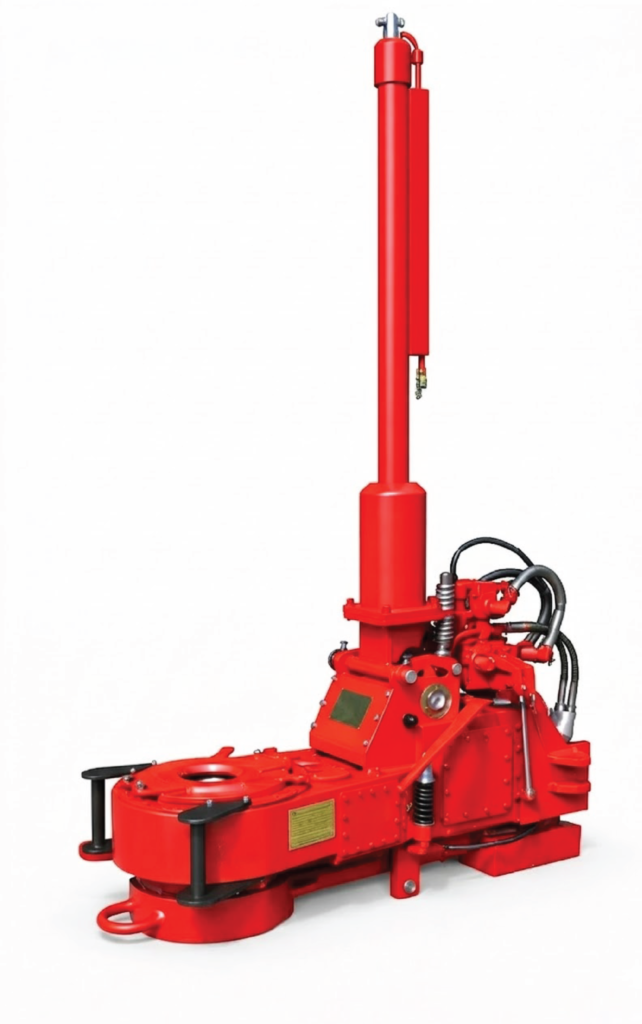

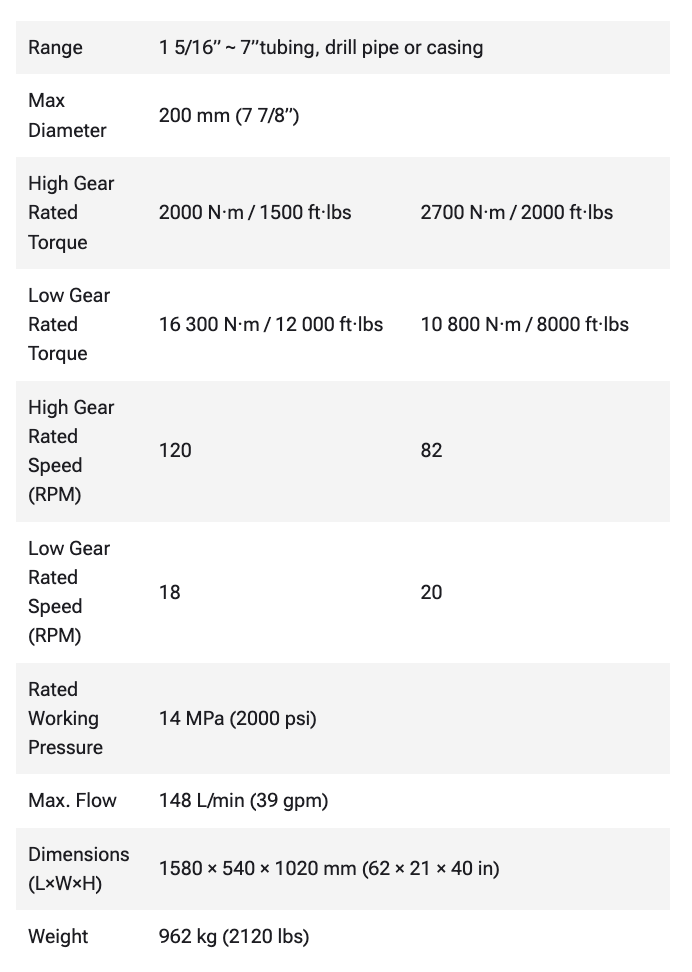

M600 Power Tongs
1 5/16” ~ 7”tubing, drill pipe or casing
Max Diameter
200 mm (7 7/8”)
148 L/min (39 gpm)
Rated Working Pressure
High Gear Rated Torque
Range
Max. Flow
High Gear Rated Speed (RPM)
2000 N·m / 1500 ft·lbs
2700 N·m / 2000 ft·lbs
Low Gear Rated Speed (RPM)
1580 × 540 × 1020 mm (62 × 21 × 40 in)
Weight
962 kg (2120 lbs)
14 MPa (2000 psi)
Dimensions (LxWxH)
Low Gear Rated Speed (RPM)
Low Gear Rated Torque
8100 N·m / 6000 ft·lbs
10 800 N·m / 8000 ft·lbs
Low Gear Rated Torque
126
82
16 300 N·m / 12 000 ft·lbs
10 800 N·m / 8000 ft·lbs
27
20
120
82
18
20
